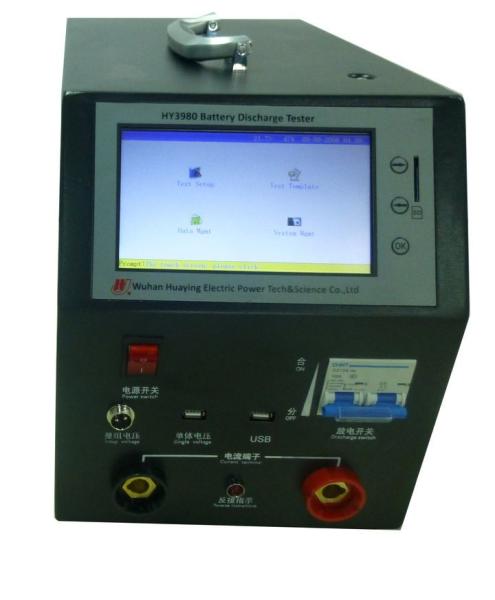

High Efficiency Battery Discharger Battery Capacity Tester Real Time Monitor

1.2 Main Functions and Features

• The product is utilized color touch screen. It can be operated via finger or the touch pen with convenience and flexibility.
• Data save mode: Internal save and external save(SD Card )
• Enhanced over voltage protecting function ,
• Automatically recovery the over current protecting function
• Overheating protection .
• Discharge Function:

Perform discharge of constant current taking advantage of intellectualized dummy load after the battery string is removed from system, set up the parameters of “discharge current”,“discharge time ”,“discharge capacity” ,“final protective voltage of whole string” and “final protective voltage of cell”, and the tester could carry out discharge function automatically, display discharge current,battery discharged capacity,the whole string voltage, cell voltage, discharge time and etc at real time; when the string reaches setup value of final discharge voltage,setup value of final discharge capacity,setup value of final discharge time,any cell voltage is below setup value of final cell voltage or manual final operation could stop discharge test.

• It could save 10 groups of discharge test data; the user could perform query, deletion, and export operation of SD card.

The computer could connect with instrument via the serial, perform test control and real-time monitor of instrument, and carry out graphic analysis.

• The computer could connect with instrument via the serial, perform test control and real-time monitor of instrument, and carry out graphic analysis.

Automatic protection function:

• The tester would stop the test automatically when it could detect the abnormity of the whole battery string or cell, and the working abnormity of tester in order to make protection of battery during the test process.
• The host machine of tester adopts the design integrating the monitoring part with power part, the power part adopts new-type high-effective parts, and it is a storage battery comprehensive tester with small volume and high efficiency.
• Humanized operation interface, simple operation, clear flow, and each operation could have English cue. Aquamarine blue high-brightness, large-screen LCD, and the display effect are clear and beautiful.
• Powerful functions of upper computer data management software, friendly interface, which could offer data management, print, analysis, statistics of report forms, automatic creation of test report , etc
