Intelligent Battery Charger Discharger with activation/discharge /charge functions
Product name:

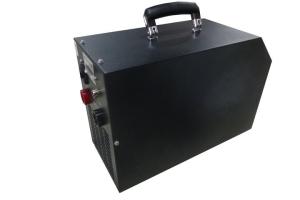

Baterry Charger Discharger HYBT-701
Main functions and features
-
Activation function
-
Check discharge function
-
Charge function
-
Real-time data memory
-
Data upload and export
-
Automatic protection function
-
The activator adopts the design integrating monitoring part with power part
-
Humanized operation interface, simple operation, clear flow, and each operation could have English cue.
-
Sea of blue high-brightness large LCD with clear and nice display effect.
-
Powerful functions of upper computer data management software, friendly interface, which could offer data management, statistics of report forms, automatic creation of test report and etc.
General
Battery Charger & Discharger HYBT-701 is special equipment for activation of VRLA (hereinafter referred as storage battery) with bad capacity caused by plate sulfuration crystallization. It possesses the functions of “activation” ,“check discharge” and “automatic charging” and etc.
This equipment adopts current advanced testing technology theory, and it has obtained a series of breakthrough in research and application of new technology, new parts, new material and new technics, which could operate check discharge test, 3-stage automatic charging for the actual conditions of different bad battery, or set up multi-cycles for the battery to operate multi-cycles charge and discharge, activate invalid active material of battery plate again, and improve bad capacity. Simultaneously it is equipped with PC application software, upload collecting data to PC in order to perform all kinds of analyses.
Its big discharge power, small volume, light weight, complete function of data management software of upper computer, and friendly,humanized interaction interface could greatly reduce the workload of daily testing and maintenance of storage battery, and is a best assistant for storage battery maintenance work.
Technical data
|
Measurement type of cell voltage
|
2V/6V/12V;
|
|
Measurement range of cell voltage
|
2V:0～3V; 6V: 4-8V; 12V:4-15V
|
|
Resolution of cell voltage
|
2V: 0.001V,6V: 0.01V, 12V:0.01V
|
|
Voltage testing accuracy
|
0.5%
|
|
Working range of charge and discharge current
|
2A～100A
|
|
Control accuracy of charge and discharge current
|
0.1A
|
|
Current testing accuracy
|
1%
|
|
Battery capacity check range
|
2V:20-1000Ah; 6V:20-200Ah:12V:20-300Ah;
|
|
Working voltage
|
AC 220±15%
|
|
Communication mode
|
RS232 communication and USB communication
|
|
Cooling mode
|
Refrigeration by blasting
|
|
Working environment
|
Temperature: 0℃～40℃ Humidity: 20%～80%RH
|
|
Storage condition
|
-20℃～70℃ package and storage
|
|
Display mode
|
LCD with High-brightness
|
|
External dimensions(w×h×l)
|
450mm×190mm×585mm
|
|
Weight
|
11kg
|
|
Carry method
|
Portable type ,move with roller wheel
|
