Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit

Name: Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
Brand: Huaying
Price: 1 USD

China Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit wholesale

Place of Origin : Wuhan Hubei China

Brand Name : Huaying

Certification : ISO

Model Number : HYYJ-502A

MOQ : 1 Set

Price : Negotiable

Packaging Details : Wooden Case

Delivery Time : 7 Working Days

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Application : Dielectric Breakdown Voltage Test

Test object : Insulation Oil

Output voltage : AC 0~80KV or 0~100KV

Rate of voltage rise : 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

Weight : 38kg

Size : 550 mm*500mm*580mm

Contact Now

Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit

1. Product Name:

Automatic Transformer Oil Breakdown Voltage Test Kit

2. Main Functions:

HYYJ-502A is improved on basis of HYYJ-502.

It increases temperature measurement.All the selection can be done by touch pad with color LCD.

1 IEC60156/IS6792/BS5874/VDE0370-5

2 User-defined

3 5 minute test

4 ASTMD877

5 ASTMD1816

6 JIS C 2101-99(S)

7 Proof "A"

8 Proof "B"

9. Calibration interface for customers
10. Unloading data to PC and making word report automatically.
11. Result print

3.Technical Parameters:

1 Voltage OEM for clients

2 AC220V±10% power supply input

3 Output voltage:AC 0V~100KV

4 Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

5 Max test times: 9

6 Init wait times:0~999s

7 Stir time: 0~999s

8 Wait time: 0~999s

9 Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

10 Temperature measurement:

11 Measurement range : 0°C to 70°C, or better

12 Temperature resolution : 1°C, or better

13 Operating temperature : up to 45°C

14 Storage:100 groups

15 7 inch colorful LCD with touch pad

16 Oil test vessel temperature measurement unit

17 All the selection can be done by touch panel with color LCD.

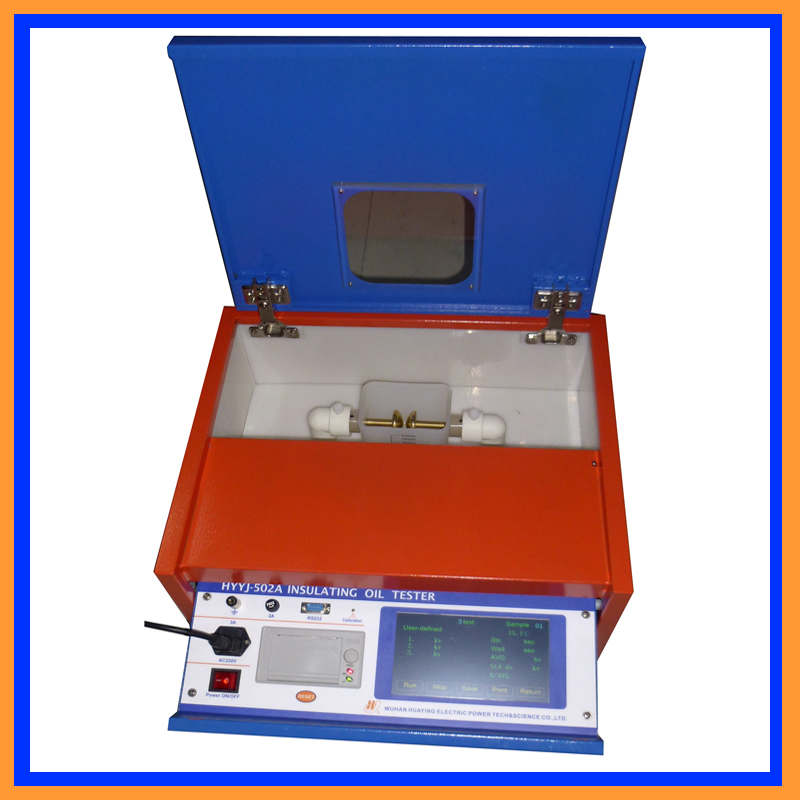

4. Product Picture:

Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
