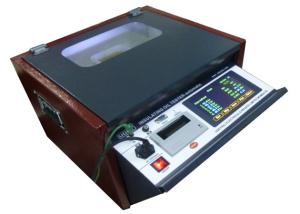

High Temperature Resistant Insulating Oil BDV Tester 5 Minute Test BS5874 VDE0370-5

Name: High Temperature Resistant Insulating Oil BDV Tester 5 Minute Test BS5874 VDE03705
Brand: Huaying
Price: 1 USD

Brand Name : Huaying

Model Number : HYYJ-502A (80KV)

Certification : ISO

Place of Origin : Wuhan Hubei China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Delivery Time : 7 Working Days

Packaging Details : Wooden Case

Operation Video : Provided

Customized input power supply : Accepted

Advantage 1 : 7 inch colorful LCD with touch pad

Advantage 2 : Oil test vessel temperature measurement unit

Product name : 80KV Insulating Oil BDV tester

Communication : RS232 port (USB port can be customized)

Contact Now

High Temperature Resistant Insulating Oil BDV Tester 5 Minute Test BS5874 VDE0370-5

1.Product Name:

80KV Insulation oil tester HYYJ-502A

2.Product Application:

In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil.

3.Main Functions:

1 IEC60156/IS6792/BS5874/VDE0370-5

2 User-defined

3 5 minute test

4 ASTMD877

5 ASTMD1816

6 JIS C 2101-99(S)

7 Proof "A"

8 Proof "B"

4.Technical Parameters:

1 Voltage OEM for clients

2 AC220V±10% power supply input

3 Output voltage:AC 0V~80KV

4 Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

5 Max test times: 9

6 Init wait times:0~999s

7 Stir time: 0~999s

8 Wait time: 0~999s

9 Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

10 Temperature measurement:

11 Measurement range : 0°C to 70°C, or better

12 Temperature resolution : 1°C, or better

13 Operating temperature : up to 45°C

14 Storage:100 groups

15 7 inch colorful LCD with touch pad

16 Oil test vessel temperature measurement unit

17 All the selection can be done by touch panel with color LCD.

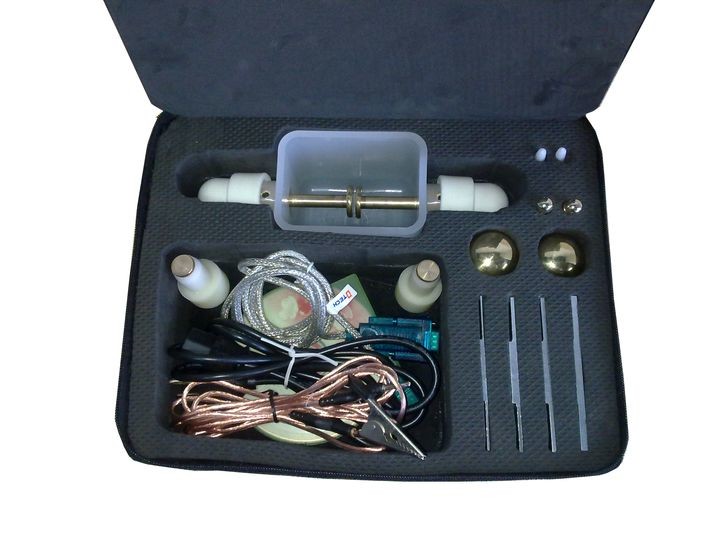

Accessories:

High Temperature Resistant Insulating Oil BDV Tester 5 Minute Test BS5874 VDE0370-5
