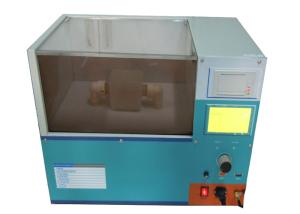

Portable 100KV Transformer Oil Dielectric Strength Tester IEC60156 Standard

Name: Portable 100KV Transformer Oil Dielectric Strength Tester IEC60156 Standard
Brand: Huaying
Price: 1 USD

Brand Name : Huaying

Model Number : HYYJ-502

Certification : ISO

Place of Origin : Wuhan Hubei China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Delivery Time : 7 Working Days

Packaging Details : Wooden Case

Product name : Transformer Oil dielectric strength tester

Output voltage : 0-100KV or 0-80KV

Test standard1 : IEC60156/IS6792/BS5874

Test standard2 : ASTMD877

Test standard3 : ASTMD1816

Storage : 100 groups

Contact Now

Portable 100KV Transformer Oil Dielectric Strength Tester IEC60156 Standard

1. Product Name:

100KV Transformer Oil dielectric strength tester HYYJ-502

2. Equipment Description:

HYYJ-502 Oil Breakdown Voltage Tester is developed according to the national standard GB86 Insulating Oil Dielectric Strength Testing Method.

It is very easy for customers to measure the breakdown voltage of all kinds of oil by HYYJ-502 Oil Breakdown Voltage Tester. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

3. Main Functions:

1 Breakdown test of user-defined

2 Proof test

3 IEC156/IS6792/BS5874/

4 ASTM D1816 standard test

5 ASTM D877 standard test

6 5 minutes standard test

7 Manual test

8 Calibration interface for customers

9 Unloading data to PC and making word report automatically.

10 Result print

4.Technical Parameters:

1 AC220V input

2 Output voltage: AC 0V~100KV or 0-80KV

3 Rate of voltage rise: 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%

4 Max test times: 9

5 Stir time: 0~999s

6 Wait time: 0~999s

7 Test error: 3% max in the range of 10kv~100kv

8 Weight: 41kg

9 Size: 630 mm*400mm*3000mm

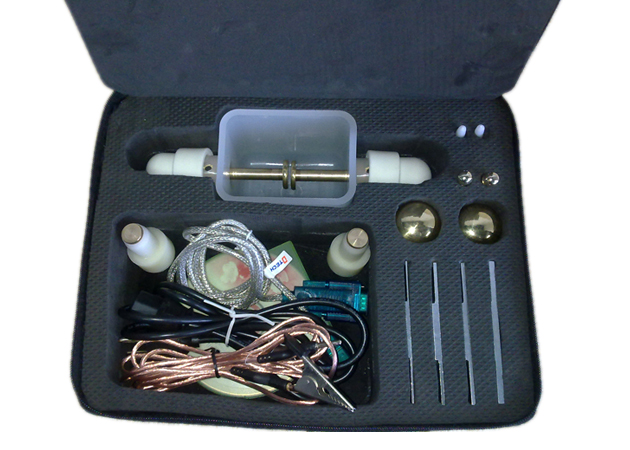

Accessories:

Portable 100KV Transformer Oil Dielectric Strength Tester IEC60156 Standard
