50 HZ 30 KV Hipot Test Set Insulating Gloves Boots Withstanding Tester

Name: 50 HZ 30 KV Hipot Test Set Insulating Gloves Boots Withstanding Tester
Brand: Huaying
Price: 1 USD

Brand Name : Huaying

Model Number : Huaying Series

Certification : ISO

Place of Origin : Wuhan Hubei China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Delivery Time : 7 Working Days

Packaging Details : Wooden Case

Warranty : 1 year free and lifelong maintenance

Input power supply : Customized

Output voltage : 0-30kV

Capacity : 3kVA

Test units : 6 units each time

Accuracy : Voltage ±2%(±3 digits) Current±2%(±3 digits)

Contact Now

50 HZ 30 KV Hipot Test Set Insulating Gloves Boots Withstanding Tester

Introduction

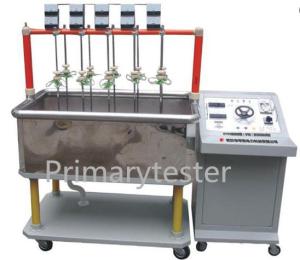

HYDZ insulating gloves and boots tester is application to test leakage current, insulation aging, power frequency of insulating gloves and boots.

Features

1. Input voltage:AC220V 50Hz

2. Output voltage:0-30kV

3. Capacity:3kVA

4. Test units:6 units each time

5. Test data:Display and print voltage data and leakage current data of each unit

6. Overcurrent protection;Overvoltage protection;User-defined time setting,display voltage data and leakage current data

7. LCD display with print

8. Accuracy:Voltage ±2%(±3 digits) Current±2%(±3 digits)

9. Weight:control unit 12kg test bench 60kg

working principl
Access 0 ~ 220 v power supply, adjust the power frequency withstand voltage test bench, according to the testing transformer electromagnetic induction principle, to produce 0 ~ 30 kv transformer (0 to 50 kv) power frequency high voltage to the electrodes, gloves (insulating boots) to obtain the specified test voltage. According to the gloves (insulating boots) test procedures, read and record the test parameters.
